Pneumatic 4 way floating ball valve

Model:

  • Port size:1/2"~14" (DN15~DN350)
  • Pressure:PN10-PN64 CL150-CL300
  • Medium:Water,steam,oil,gas,etc.
  • Temperature :-29~150℃,-40~450℃
  • Body material:WCB,CF8,CF8M,CF3,CF3M etc.
  • Description:China pneumatic 4 way ball valve manufacturer,factory and supplier.
Pneumatic 4 way floating ball valve  introduction
Pneumatic 4 way floating ball valve is the X type vertical channels ball valve,four channel distribution from all sides, when ball core rotation 90 degrees,Pneumatic 4 way floating ball valve can make the two channels to achieve mutually close,This series of Pneumatic 4 way floating ball valve mainly supply in the power station system two-way water supply rotation valve. Each rotation 90 degree, can be switch water supply mode. Pneumatic 4 way floating ball valve can instead of four valves, simplify the procedures, Simple operation, lower cost, easy to control, good synchronization.

Pneumatic 4 way floating ball valve Body
Nominal diameter: DN15-DN350
Body material: WCB,CF8,CF8M,CF3,CF3M etc.
Connection type: Flange
Pressure class: PN1.6-6.4MPa
Structure type: Four-way

Pneumatic 4 way floating ball valve Valve components
Seat sealing: PTFE:-30℃~180℃
PPL :-30℃~250℃
Core material: 304、316、316;
Stem material: 304
Applicable medium: Liquids, gas, oil,etc

Pneumatic 4 way floating ball valve Design and manufacturing standards
Design and manufacture: GB/T12238-2008
Connection standard: JB/T 79.1-1994
Structure length: GB/T12221-2005
Pressure testing: GB/T13927-2008

Pneumatic 4 way floating ball valve actuator parameter
Pneumatic actuator
Control type
Double acting Failure to maintain
Single acting normally closed Failure to close
Single acting normally open Failure to open
Optional accessory Solenoid valve, limit switch box, air filter relief pressure valve, positioner, manual device.
ON-OFF type Feedback: the active signal, passive contact signal, resistance, 4-20mA
Regulation type Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
Filed operation The field, remote control switch regulation and MODBUS, PROFIBUS field bus

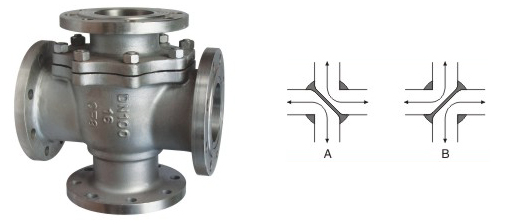

Pneumatic 4 way floating ball valve flow diagram

Pneumatic 4 way floating ball valve
