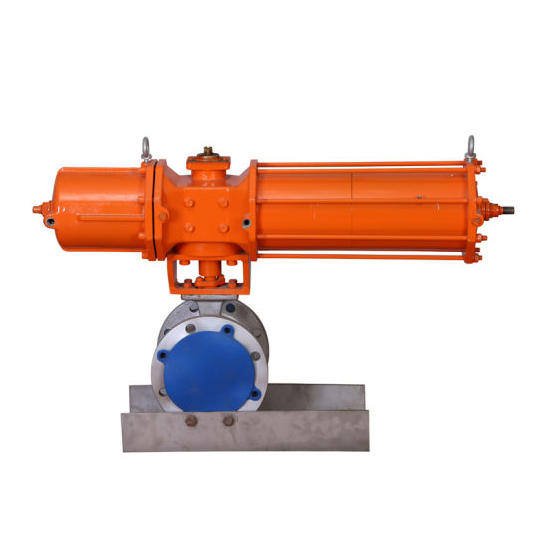

Single acting pneumatic ball valve

Model:

  • Port size:DN15~500, NPS 1/2〞~ 20〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-196~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Description:
  • Single acting pneumatic ball valve feature

    Single acting pneumatic ball valve is a kind of quarter-turn on-off valve is used for quick open and close in the emergency system.Single acting pneumatic ball valve is mainly used for shut-off control of media. This series of Single acting pneumatic ball valve adopts round hole in the ball. When opened, it is directly connected to the body flow channel, featured by high flow capacity. Compared with plunger valves, Single acting pneumatic ball valve has small structural sizes, light weight and the function of self-cleaning between plug and seat. Therefore, it is very suitable for viscous, fibrous media and those containing suspended solid particles. With low heat expansion impact due to temperature, and good sealing performance, Single acting pneumatic ball valve is widely applied in the systems of such industries as petrochemical industry, metallurgy, chemical fiber, pulp & paper, medicine, hydroelectric station, etc. to meet the needs of remote control of process parameters such as flow, pressure, temperature and liquid level of all gases, liquids or corrosive gases and liquid media.
  • Single acting pneumatic ball valve main technical parmaneters

    ball valve body type  two-piece,three-piece
    Nominal diameter DN15~500(NPS1/2~24)
    Nominal pressure PN 1.6~4.0Mpa(Clsaa150~600)
    Type of connection flanged
    Pneumatic ball valve Material A216-WCB, A351-CF8, A351-CF8M, A351-CF3,
    A351-CF3M, A217-WC6, A217-WC9
    Bonnet: standard type -20~250ºC
    high temperature type 250~525ºC
    Packing PTFE, flexible graphite, nickel-based wire reinforced flexible graphite
