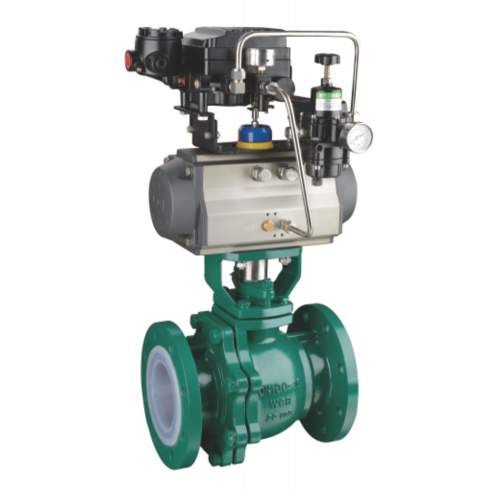

Pneumatic PTFE PFA lined ball valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:acid, alkali, aqua wang etc.
  • Temperature :-20~150℃
  • Body material:WCB CF8 CF8M+FEP/PTFE/PFA
  • Description:
  • Pneumatic PTFE PFA lined ball valve feature

    Pneumatic PTFE PFA lined ball valve is PTFE or PFA lined structure, which is used alikali,acid and other corrosive medium , which can fully instead of stainless steel bal valve, Pneumatic PTFE PFA lined ball valve is mounted with pneumatic actuator, achieving in the purpose of automatic control and remote control on the ball valve action.

    There are two types of pneumatic actuators mounted with the Pneumatic PTFE PFA lined ball valve, one type is single action pneumatic actuator (which is also called spring return pneumatic actuator); the other type is double action pneumatic actuator. Normally, the clients select the spring return pneumatic actuator, because this type of pneumatic actuator needs only one air supply.

  • Pneumatic floating ball valve specification

    Size  1/2"~12",DN15~DN300
    Normal pressure   PN10/PN16 or CLASS 150,Lined structure can not bear high pressure
    Design standard API 608,API 6D, ASME B16.34, MSS SP-72; BS5351,ISO17292,EN13709
    Marked MSS SP-25
    Fire safe design API607,API 6FA
    End flange ANSI B 16.5,ASME B16.47;  EN1092,DIN2543~DIN2547,AS2129
    Face to Face ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752
    Top flange ISO 5211
    Test standard API598,API6D;DIN3230, EN12266,ISO 5208
    Suitable temperature  -29~150°C
    Medium  acid, alkali, aqua wang or other corrosive medium etc.
    Acidic environment NACE MR0175
    Operation Pheumatic Actuated:Single action,double action or regulating type
    Handwheel for manual operation is optional
  • Pneumatic floating ball valve Technical requirement

    Nominal diameter DN(mm) 25 40 50 65 80 100 125 150 200 250 300
    Rated flow coefficient Cv Full chamber type 14 30 55 100 135 230 320 500 850 1300 1750
    Shrinkage chamber type 6 12 20 40 54 92 128 200 340 520 700
    Double action pneumatic actuaror Air supply pressure 400KPa
    Model Torque(N.M) PTFE packing , metal seal allow differential pressure
    ATD63 23.5 2.35 0.94
    ATD75 46.5 5.0 2.84 1.49 0.57 0.33
    ATD88 73.2     2.39 0.99 0.62
    ATD100 106       1.54 0.99 0.30 0.19
    ATD125 221           1.29 0.80 0.39
    ATD160 453           2.84 1.79 0.89 0.47 0.26 0.14
    Single action pneumatic actuator Air supply pressure 400KPa
    Model torque(N.M) PTFE packing , metal seal allow differential pressure
    ATS75 26.5 0.19
    ATS88 44 1.19 0.09
    ATS100 60.7 3.97 1.59 0.81 0.11
    ATS125 126     2.19 0.89 0.59
    ATS160 269         1.39 0.53 0.34
    ATS200 467           2.84 1.79 0.89 0.47 0.26 0.14
