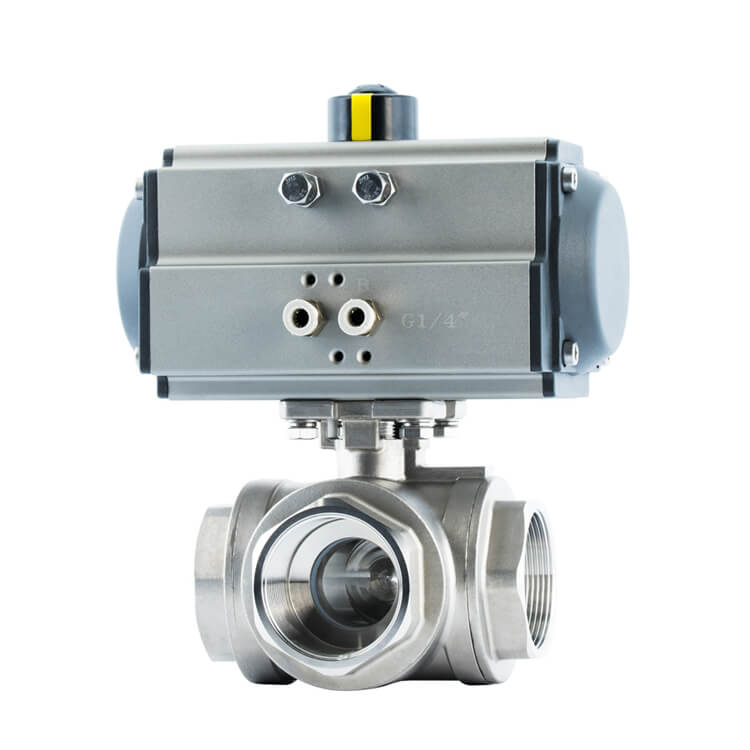

304 316 3 way pneumatic ball valve

Model:

  • Port size:DN15~50, NPS 1/2〞~ 2〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-29~180℃
  • Body material:CF8,CF8M
  • Description:
  • 304 316 3 way pneumatic ball valve Featue

    304 316 3 way pneumatic ball valve is divided into L port pneumatic 3 way ball valve and T port pneumatic 3 way ball valve.Pneumatic L port 3 way ball valve is used for the direction switch of medium flow, enabling two channels that are vertical to each other connect.The Pneumatic T port 3 way ball valve is used for diversion,convergence and flow direction switch of medium.304 316 3 way pneumatic ball valve is widely used in water supply,petrochemical,metallurgy,mining,textile,energy, papermaking,food,steel and other pipeline systems to switch the flow direction of the medium and to divert or converge.

  • 304 316 3 way pneumatic ball valve Performance

    Type of Pneumatic Actuator Double Acting/Single Acting
    Air Supply Pressure Double Acting:2-8bar / Single Acting:4-8bar
    Output Torque Double Acting:4N·M~10560N·M
    Single Acting:7N·M~2668N·M
    Working Temperature Normal temperature type:-20℃~80℃(Nitrile rubber O-ring)
    High temperature type:-20℃~160℃(Fluorocarbon O-ring)
    Range of motion 0~90°±5°
    Interface thread ATD50~ATD88    G1/8″
    ATD100~200   G1/4″
    Valve position signal

    Positioner:4~20mA;                        Limit Switch:full open/full close signal

  • 304 316 3 way pneumatic ball valve Technical parameter

    Nominal diameter:DN15~DN50;
    Nominal pressure:PN1.6,PN2.5,PN4.0,PN6.4;
    Connection type:female thread;
    Action range:0~90°;
    Body material: stainless steel 304/316/316L;
    Ball material:stainless steel 304/316/316L;
    Seat seal:PTFE,PPL,metal seal;
    Application temperature: PTFE≤180°C, PPL≤350°C, metal seal≤450°C;

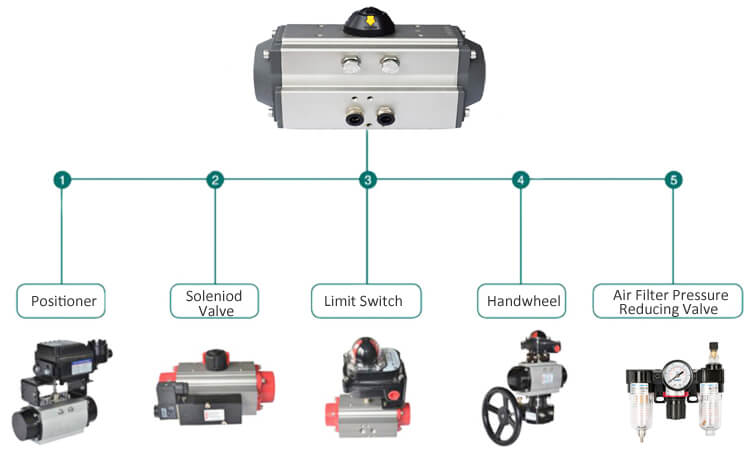

  • 304 316 3 way pneumatic ball valve accessories

    304 316 3 way pneumatic ball valve accessories
