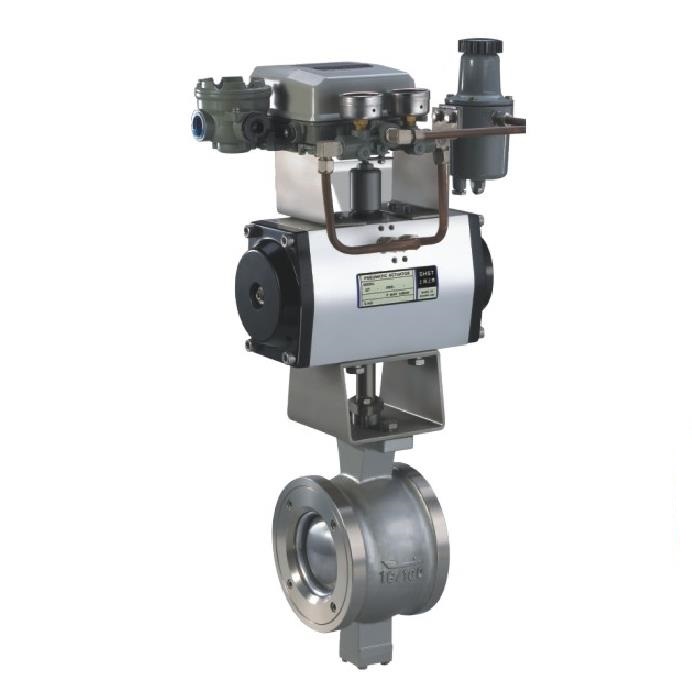

Pneumatic V Port Segmented Ball Valve

Model:

  • Port size:DN25~600, NPS 1〞~ 24〞
  • Pressure:PN10 ~ 40,150LB ~ 300LB
  • Medium:Water,air,gas
  • Temperature :-46~425℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Description:
  • Pneumatic V Port Segmented Ball Valve Featue

    Pneumatic V Port Segmented Ball Valve is a control valve with rotary motion. Its has the same sealing performance as ordinary ball valves, so that it has both control and on-off functions. When V Port Segmented Ball Valve equipped with a pneumatic or electric actuator, Pneumatic V Port Segmented Ball Valve can be widely applied in industrial process automatic control systems.Pneumatic V port segmented ball valve is a quarter-turn valve that provides control in high flow or severe service applications that require precise control.

    Pneumatic V Port Segmented Ball Valve Size: 1 ”-24”, DN25-DN600

    Pressure range: Class 150lb-300lb, PN1.0MPa-PN4.0MPa

    Temperature: -46℃-+425℃

    Pneumatic V Port Segmented Ball Valve Connection: Flanged, wafer

    Stem Seal type: self-sealing stuffing box structure, flexible graphite packing structure

    Standard leakage class: CLASS V
    Flow characteristic: Approximate equal percentage

    Pneumatic V Port Segmented Ball Valve Adjustable ratio: 200:1

    Leakage standard: ANSI B16.104

    Actuator: Pneumatic piston, Gas over oil, Electric, Electro-hydraulic

    Material: ASTM A216 WCB,WCC, ASTM A352 LCB, LCC, ASTM A351 CF8, CF3, CF8M, CF3M 2205,Hastelloy, Monel, Inconel
