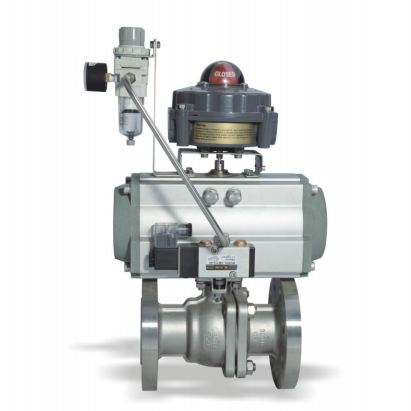

Pneumatic floating ball valve

Model:

  • Port size:DN15~500, NPS 1/2〞~ 20〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Description:
  • Pneumatic floating ball valve feature

    Pneumatic floating ball valve is one type of ball valve assembly which is mounted with pneumatic actuator, achieving in the purpose of automatic control and remote control on the ball valve action.
    There are two types of ball valves mounted with the pneumatic actuator, one type is the normal ball valve, before mounting with the pneumatic actuator, mounted with one pad firstly for mounting the pneumatic actuator. this type of ball valve assembly is the old type, but its costs is lower relatively. The other type is the ball valve is basically together with mounting pad when casting, no needing mounting the pad when mounting with the pneumatic actuator. This type ofPneumatic floating ball valve is more beautiful, and it's performance is more stable, for this, this type of ball valve assembly is more and more popular in the actuated ball valve marketing, although its prices are higher.
    There are two types of pneumatic actuators mounted with the Pneumatic floating ball valve, one type is single action pneumatic actuator (which is also called spring return pneumatic actuator); the other type is double action pneumatic actuator. Normally, the clients select the spring return pneumatic actuator, because this type of pneumatic actuator needs only one air supply.

  • Pneumatic floating ball valve specification

    Pneumatic floating ball valve Types:
    1. Threaded ball valve with pneumatic actuator
    2. Flanged ball valve with pneumatic actuator
    3. 3 way ball valve with pneumatic actuator

    Pneumatic floating ball valve performance:
    Design: BS5351, ANSI B16.34, DIN, JIS
    ​Sizes: 1/2" ~8" (15mm~200mm)
    Nominal Pressure: PN10, PN16, PN25, CLASS150LB, CLASS300LB, JIS10K, JIS20K
    Materials: Carbon steel, stainless steel, sanitary stainless steel, cast iron
    Mounting Pad: ISO5211
    Pneumatic Actuator Specifications:
    Air Supply: 3bar~7bar

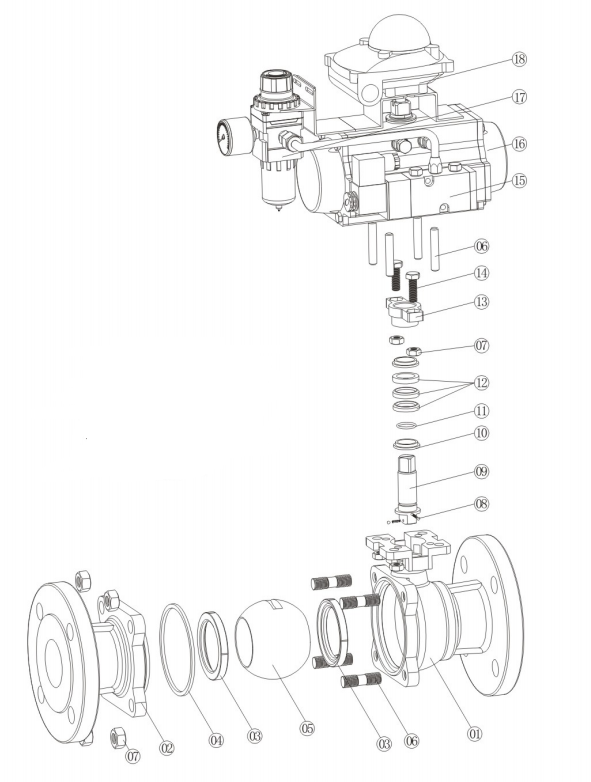

  • Pneumatic floating ball valve structure



  • Pneumatic floating ball valve Technical requirement

    Nominal diameter DN(mm) 25 40 50 65 80 100 125 150 200 250 300
    Rated flow coefficient Cv Full chamber type 14 30 55 100 135 230 320 500 850 1300 1750
    Shrinkage chamber type 6 12 20 40 54 92 128 200 340 520 700
    Double action pneumatic actuaror Air supply pressure 400KPa
    Model Torque(N.M) PTFE packing , metal seal allow differential pressure
    ATD63 23.5 2.35 0.94
    ATD75 46.5 5.0 2.84 1.49 0.57 0.33
    ATD88 73.2     2.39 0.99 0.62
    ATD100 106       1.54 0.99 0.30 0.19
    ATD125 221           1.29 0.80 0.39
    ATD160 453           2.84 1.79 0.89 0.47 0.26 0.14
    Single action pneumatic actuator Air supply pressure 400KPa
    Model torque(N.M) PTFE packing , metal seal allow differential pressure
    ATS75 26.5 0.19
    ATS88 44 1.19 0.09
    ATS100 60.7 3.97 1.59 0.81 0.11
    ATS125 126     2.19 0.89 0.59
    ATS160 269         1.39 0.53 0.34
    ATS200 467           2.84 1.79 0.89 0.47 0.26 0.14
