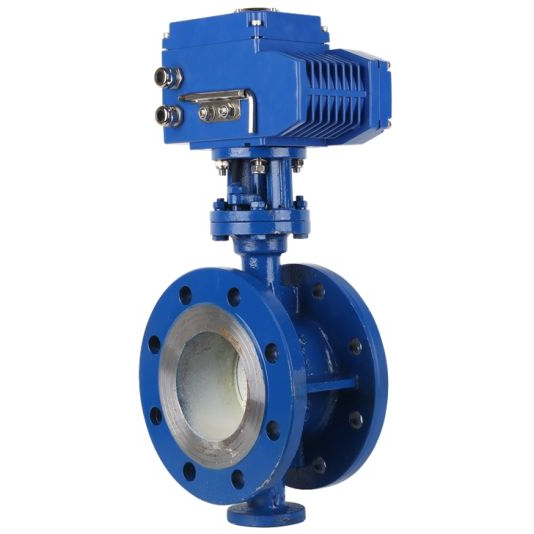

Electric flanged butterfly control valve

Model:

  • Port size:DN50~600, NPS 2〞~ 24〞
  • Pressure:PN16 ~ 64 CLASS 150/600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-40~450℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Description:
  • Electric flanged butterfly control valve feature

    1. The opening and closing are convenient , the fluid resistance is small,can operate frequently
    2. Electric motorized flanged butterfly valve is simple structure, small volume and light weight.
    3. Under low pressure, good seal can be achieved.
    4. Electric motorized flanged butterfly valve isood regulatory performance.

    Electric flanged butterfly control valve is widely used in textile, power station, petrochemical, heating and refrigeration, pharmaceutical, shipbuilding, metallurgy, light industry and environmental protection fields.

  • Electric flanged butterfly control valve actuator description

       Electric motorized flanged butterfly valve
    DATA SHEET FOR ELECTRIC ACTUATORS



        General





    Actuator Type

    Motor Operated

    Relative Humidity (Min/Max) %

    20% - 80%

    Service

    On -Off  / Modulation













    Electric flanged butterfly control valve  actuator

















    Opening Time: Full Open

    5s /10s /15s / 30s

    Opening Time: Full Close

    5s /10s /15s / 30s

    Enclosure

     IP67

    Hand Wheel for Manual Operation Clockwise to  Close
    Torque Output (Nm)  30N.m- 2000N.m

    Rated Power (Kw)

     50Hz /60Hz

    Rated Current (A)

     AC220V/ AC380 V/ DC12V /DC24V

    Stroke

     Angular 90

    Control Signal

     Impulsive

    Limit Protection

     Yes

    Torque Protection

     Yes

    Motor Protection when valve jams

     Yes

    Thermostatic Protection

     Yes

    Overloading and short circuit of control

     Yes

    Surface Colour

    Blue / orange / grey

    Operation/ Maintenance Manual

     Yes

    Test report and Certificates

     CE
