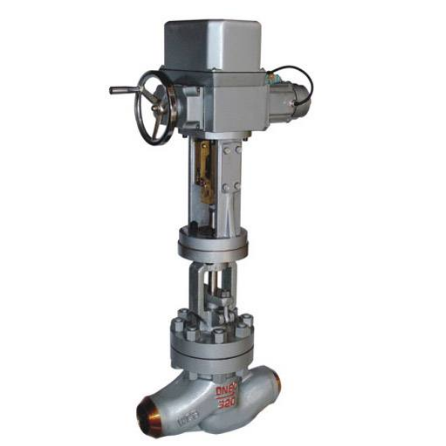

High pressure electric control valve

Model:

  • Port size:DN25~300, NPS 1〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,liquid,air,gas
  • Temperature :-20~540℃
  • Body material:WCB WC6 WC9 CF8 CF8M
  • Description:
  • High pressure electric control valve Feature

    High pressure electric control valve is used for high pressure high temperature boiler steam steam, High pressure electric control valve is composed of a DKZ type series of straight travel electric actuator and through single seat control valve is composed of two parts, with the single phase AC 220V or DC 380V power supply for power, accept 0~10mA or 4~20mA DC signal, automatic control valve opening, continuous regulation of pipeline fluid pressure, flow, level and other parameters. High pressure electric control valve is sensitive, convenient use, energy and signal transmission characteristics of rapid. High pressure electric control valve is widely used in electric power, metallurgy, chemical industry, textile and other industrial automatic control system.
  • High pressure electric control valve specification

     Electric high pressure angle control valve  Body type: casting globe type
    Spool type: cage guiede
    Nominal size: DN20~300 NPS 3/4〞~ 12〞
    Nominal pressure: PN100~ 420、 CLASS 600LB ~ 2500LB
    Connection: flange: RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Electric high pressure angle control valve Bonnet type: Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Control valve Actuator: electric actuator.
  • High pressure electric control valve material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/WC9CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing flexible graphite
    Bellow 304,316,316L
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Stem 2Cr13/17-4PH/304/316/316L
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
  • High pressure electric control valve performance

    Electric high pressure angle control valve  Flow characteristic Linear, percentage
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage 1.6~630/ linear CV1.8~690
    Electric angle control valve
    Allowable leakage
    Metal seal:  IV grade(0.01% rated capacity)
    Leakage standard:  GB/T 4213
    Electric  angle control valve  Performance
    Intrinsic error(%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
