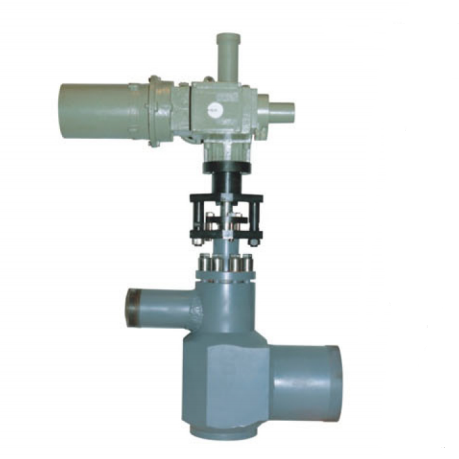

Electric high pressure bypass control valve

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Electric high pressure bypass control valve feature
Electric high pressure bypass control valve is a high differential pressure control valve with special structures. The Electric high pressure bypass control valve has the function of starting the control valve, pressure reducing bypass valve and safety valve. Electric high pressure bypass control valve can realize fast automatic tracking and over-pressure protection, and the boiler safety valve is saved.

The Electric high pressure bypass control valve can realize fast starting within 6 seconds. Through adjusting the steam pressure, the control system of the electric actuator can be suited to parameter starting, stopping and running of the unit under different service conditions. After load shedding by the unit, the boiler may not stop immediately and can start running again within several minutes after the malfunction is eliminated. Thus, not only the starting and stopping times of the boiler are reduced, but heat impact on the turbine is reduced. The adjustment of desuperheater water is quickly linked to the high pressure bypass, so that temperature and pressure are lowered to a great extent, and the bulky temperature and pressure reducing systems and equipment in power plants are reduced. Therefore, the Electric high pressure bypass control valve is an important control valve in reheating unit bypass systems of large volume units.

Trim features：	multi-level, multi-hole cage balanced trim structure
Body type：	Z type body
Bonnet type：	standard type heat dissipation type
Flow characteristic：	equal percentage
Size：	inlet DN125 (5”) outlet DN300(12”)
Pressure class：	PN25、32Mpa（ANSI 1500LB）
Leakage class：	ASME B16.104 Ⅴ（standard type metal seat）
Pipe connection type：	butt welding type
Applicable temperature range：	less than 570C°
Actuator type：	pneumatic diaphragm actuator pneumatic piston actuator electric actuator
