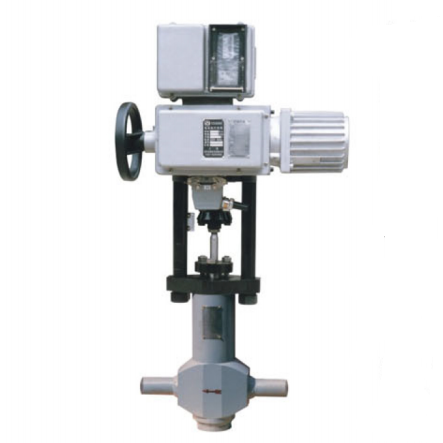

Electric boiler blowdown control valve

Model:

  • Port size:DN25~50, NPS 1〞~ 2〞
  • Pressure:PN25~32Mpa(1500~2500LB)
  • Medium:Water,steam,gas
  • Temperature :-29~420℃
  • Body material:WCB A105
  • Description:
  • Electric boiler blowdown control valve feature

    Electric boiler blowdown control valve is a kind of anti-cavitation multi-stage pressure reduction valve. The specially designed trim of Electric boiler blowdown control valve enables fluid pressure reduction stage by stage, so that fluid velocity is controlled and cavitation damage is avoided. The throttling part is separable from the sealing face to effectively protect the sealing face. The  Electric boiler blowdown control valve trim surface is subjected to hardening treatment, reaching a hardness of about HRC70.  Electric boiler blowdown control valve is featured by good erosion resistance and long service life. A large notch is opened on the plug surface, so that the plug will not be blocked if the fluids contain granules. The Electric boiler blowdown control valve is an ideal solution to the intermittent elimination of indissoluble sediments and impurities in boiler water in power plants.
  • Electric boiler blowdown control valve technical parameter

    Trim features: top guided unbalanced trim structure
    multi-stage throttle valve plug structure
    Body type: straight-through type angle type
    Bonnet type: standard type  heat dissipation type
    Flow characteristic: equal percentage  linear  quick open
    control valve Size: DN25-50(1”-2”)
    Pressure class: PN25、32Mpa(ANSI 1500、2500LB)
    Leakage class: ASME B16.104 Ⅴ(standard type metal seat)
    Pipe connection type: flange type butt welding type
    Applicable temperature range: less than 420C°
    control valve Actuator type: pneumatic diaphragm actuator
    pneumatic piston actuator
    electric actuator

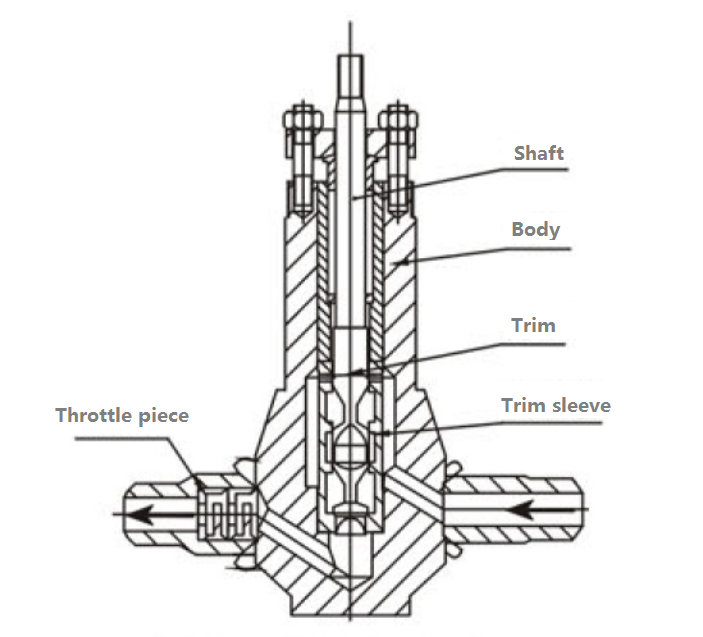

  • Electric boiler blowdown control valve structure
