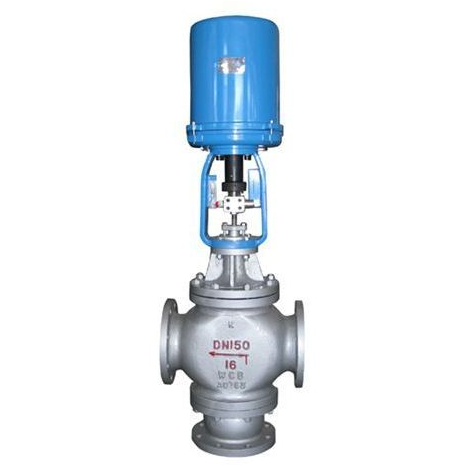

ZRHF Electric 3 way control valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,oil,steam,gas
  • Temperature :-20~230℃
  • Body material:WCB LCB CF8 CF3 CF8M CF3M
  • Description:
  • ZRHF Electric 3 way control valve Feature

    ZRHF Electric 3 way control valve has diverging and converging structure,3 way control valve adopts double valve cores up and down guide structure, equipped with multiple spring actuator.Electric 3 way control valve can replace two sets two-way valve and widely used in many occasions to regulate pressure, flow rate, temperature and liquid level.
    The Electric 3 way control valve body has the features as below:
    1.compact structure, light weight, sensitive action, low pressure drop loss, new high allowable pressure, large valve capacity, accurate flow characteristics and convenient maintenance, etc.,
    2.Electric 3 way control valve can be used for various working conditions, especially for the temperature control system of oil industry heat exchange and automatic control of other industries.
    3.Spool structure with side guiding, well stability, no vibration, low noisy, Electric 3 way control valve can bear high pressure difference, easy for connection.
    4.While with low nominal size and pressure difference, converging control valve can be used in diverging occasion. However, while nominal size higher than DN100 and high pressure difference, converging control valve and diverging control valve can’t be exchanged.
  • ZRHF Electric 3 way control valve specification

    control valve Body type: 3-way casting globe type
    Spool type: 3-way double seat spool
    Nominal size: DN20~300,、 NPS 3/4〞~ 12〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Electric 3 way control valve
    Bonnet type:
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
     Electric 3 way control valve
    Actuator:
    Electric: 3810L series smart actuator, PSL series actuator.
  • ZRHF Electric 3 way control valve structure

  • ZRHF Electric 3 way control valve type code

    Z Actuator H Structure Nominal size Body material Bonnet type Nominal pressure
    Z series control valve R: electric 3810L type
    D: electric PSL type
    H: direct travel F: diverging type
    H: converging type

    DN25=NPS1〞=25

    C=WCB
    LC=LCB
    P=CF8
    PL=CF3
    R=CF8M
    RL=CF3M
    D= special material
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than   230℃ occasion)
    Ⅲ:Low temperature       extended type
    (-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation  Jacket type
    DN25= DN25
    NPS1〞=
    NPS 1〞
    PN16=16
    CL150LB=150 LB
    JIS10K=10K
    Such as: Electric converging (diverging) 3 way control valve, radiator type, pressure PN16, valve material WCB, nominal size DN50, type:  ZRHF-50CⅡ-16
  • ZRHF Electric 3 way control valve Performance

    Electric 3 way control valve Flow characteristic Linear, percentage
    Allowable range 30: 1
    Rated Cv value Percentage / linear CV8.5~1280
    Electric 3 way control valve
    Allowable leakage
    Metal seal:  IV grade(0.01% rated capacity)
    Leakage standard:  GB/T 4213
    ZRHF Electric 3 way control valve Performance
    Intrinsic error (%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
  • ZRHF Electric 3 way control valve special requirement

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • ZRHF Electric 3 way control valve actuator parameter

    Electric 3 way control valve
    Type\ Method
    Electric actuator
    3810L series
    Intelligent integrated type
    Usage Regulating
    Air supply pressure or Power supply voltage Power: AC 200V±10%  50Hz
    Or Power:  AC 380V±10% 50Hz
    Connector Normal type:  cable inlet 2-PF(G1/2〞)
    Explosive proof:  Protection jacket PF(G3/4〞)
    Direct action Input signal increase, stem descend, valve close.
    Reaction Input signal increase, stem ascend, valve open.
    Input signal Input/output4~20mA.DC
    Lag ≤0.8%FS
    Linear type +1%FS
    Environmental temperature Standard type: -10℃~+60℃
    With space heater : -35℃~+60℃
    Explosive proof: -10℃~+40℃
    Electric 3 way control valve
    Accessories
    Space heater (normal type)
    Non-standard accessories, need special customized notes.
  • ZRHF Electric 3 way control valve technical parameter

    Seat diamter(mm) 25 32 40 50 65 80 100 125 150 200 250 300
    Rated flow coefficient, CV 8.5 13 21 34 53 85 135 210 340 535 800 1280
    Nominal size Travel Option flow coefficient Cv(★standard ●recommended)
    DN25 16 mm
    DN32 25 mm
    DN40
    DN50
    DN65 40mm
    DN80
    DN100
    DN125 60mm
    DN150
    DN200
    DN250 100mm
    DN300
    Electric actuator Electric 3 way control valve
    Metal sealing max. allowable pressure difference(MPa)
    Type Thrust(N)
    3810L-08 800 1.52
    3810L-20 2000 3.05 1.86 1.19 0.76
    3810L-30 3000   2.79 1.79 1.14
    3810L-50 5000   4.66 2.98 1.91 1.13 0.6 0.47
    3810L-65 6500         1.35 0.8 0.57 0.39 0.26 0.16
    3810L-99 10000               0.61 0.42 0.20 0.17 0.11
    3810L-160 16000               0.97 0.67 0.35 0.27 0.18
