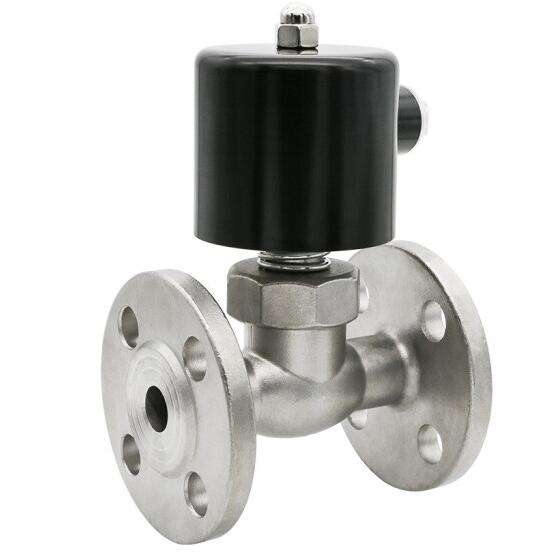

Normally closed stainless steel solenoid valve

Control valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：1/2"~12" (DN15~DN300)
Pressure：PN10-PN100 CL150-CL600
Medium：Water,steam,oil,gas,etc.
Temperature :-29～150℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Description：China Normally closed stainless steel solenoid valve manufacturer, factory and supplier.

Normally closed stainless steel solenoid valve manufacturer, factory and supplier in China. Normally closed stainless steel solenoid valve is widely used to fluid control and adjust the direction, flow rate, velocity and other parameters of the medium in industrial control system.

Normally closed stainless steel solenoid valve specification

• Features: Fast Acting, Zero Leakage, Low Start-UP Pressure, Lifespan 80,000 Times, etc
• Function: Normally Closed / Normally Open
• Material: Brass, Stainless Steel, and Plastic
• Size Range: 1/4″ to 2″
• Medium: Water, Oil, Air, Gas, Liquid, etc
• Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
• Connection: Thread, Tri Clamp, Flange
• Application: Water Treatment, Food and Beverage, Water Fountain, Pharmaceutical, Irrigation, Chemical Process, etc

Port Size	1/4″~2″	Orifice(mm)	08-DN50
Pressure	1~10MPa	Medium	Water, Air, Oil, Liquid, etc
Switching Function	Normally Closed (NC)	Sealing Material	NBR, PTFE
Temperature of Media	0~180℃	Body Material	Stainless Steel
Voltage	DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz	Structure	Direct Acting Solenoid Valve

Normally closed stainless steel solenoid valve Working principle:
Normally closed type: when the coil is energized, the pilot spool pulls, the pilot hole opens, the valve chamber pressure relief, the piston on the lower chamber medium pressure to promote, the solenoid valve open; When the coil power, the pilot spool by the spring return, pilot hole closed, the valve chamber by the piston throttle hole pressurized and reset the thrust of the spring, the solenoid valve is closed.

Check function: the outlet end is greater than the inlet end pressure, the medium will be anti - guide through. Check valves can be installed or customized with check function.

Manual control:
Normally closed - when the solenoid coil is not energized or burned out, the valve can be opened manually. However, the valve cannot be controlled automatically when it is manually opened.
Normally open - when the solenoid coil is not energized or burned out, the valve can be closed manually. But manual in the off state can not automatically control and coil power and power, the valve can not play
