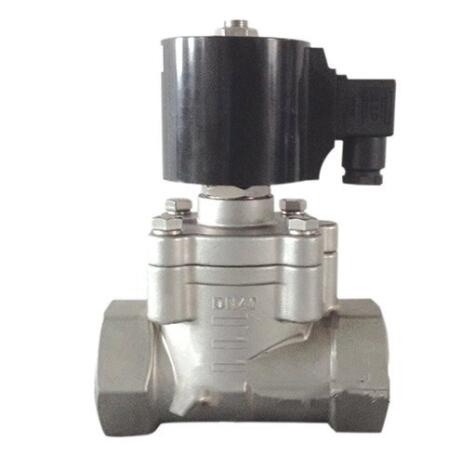

2 Way stainless steel solenoid valve manufacturer, factory and supplier in China. 2 Way stainless steel solenoid valve is normally closed or normally open, 2 Way stainless steel solenoid valve is widely used to fluid control and adjust the direction, flow rate, velocity and other parameters of the medium in industrial control system.
2 Way stainless steel solenoid valve specification
• Features: Fast Acting, Zero Leakage, Low Start-UP Pressure, Lifespan 80,000 Times, etc
• Function: Normally Closed / Normally Open
• Material: Brass, Stainless Steel, and Plastic
• Size Range: 1/4″ to 2″
• Medium: Water, Oil, Air, Gas, Liquid, etc
• Voltage: 12 Volt DC, 24 Volt DC, 24 Volt AC, 110 Volt AC, 220 Volt AC
• Connection: Thread, Tri Clamp, Flange
• Application: Water Treatment, Food and Beverage, Water Fountain, Pharmaceutical, Irrigation, Chemical Process, etc
| Port Size |
1/4″~2″ |
Orifice(mm) |
08-DN50 |
| Pressure |
1~10MPa |
Medium |
Water, Air, Oil, Liquid, etc |
| Switching Function |
Normally Closed (NC) |
Sealing Material |
NBR, PTFE |
| Temperature of Media |
0~180℃ |
Body Material |
Stainless Steel |
| Voltage |
DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
Structure |
Direct Acting Solenoid Valve |
2 Way stainless steel solenoid valve application:
2 way stainless steel solenoid valve is suitable for neutral pure gas or liquid, especially air, water, hot water, gas, natural gas, diesel and other pipeline control system; Military, aerospace, shipbuilding heavy industry, nuclear industry, petrochemical, electric power, chemical, light industry, machinery, scientific research, industrial kiln, drying equipment, boiler, water supply and drainage, air conditioning, fire, food medical, cleaning equipment, pipeline medium automation control and other fields.
2 Way stainless steel solenoid valve Product features:
Precision casting, exquisite appearance;
Pilot piston structure, stable performance;
Good sealing, quick switching;
Autocratic coil, not easy to burn;
Service life as long as five million times.
2 Way stainless steel solenoid valve Working principle:
Normally closed type: when the coil is energized, the pilot spool pulls, the pilot hole opens, the valve chamber pressure relief, the piston on the lower chamber medium pressure to promote, the solenoid valve open; When the coil power, the pilot spool by the spring return, pilot hole closed, the valve chamber by the piston throttle hole pressurized and reset the thrust of the spring, the solenoid valve is closed.
Normally open type: when the coil is energized, the pilot hole is closed, the valve chamber is pressurized by the piston throttle hole and the thrust of the reset spring, the solenoid valve is closed. When the coil power, the pilot spool by the spring return, pilot hole open, pressure relief valve on the chamber, the piston on the lower chamber medium pressure to promote, the solenoid valve open.
Check function: the outlet end is greater than the inlet end pressure, the medium will be anti - guide through. Check valves can be installed or customized with check function.
Manual control:
Normally closed - when the solenoid coil is not energized or burned out, the valve can be opened manually. However, the valve cannot be controlled automatically when it is manually opened.
Normally open - when the solenoid coil is not energized or burned out, the valve can be closed manually. But manual in the off state can not automatically control and coil power and power, the valve can not play
