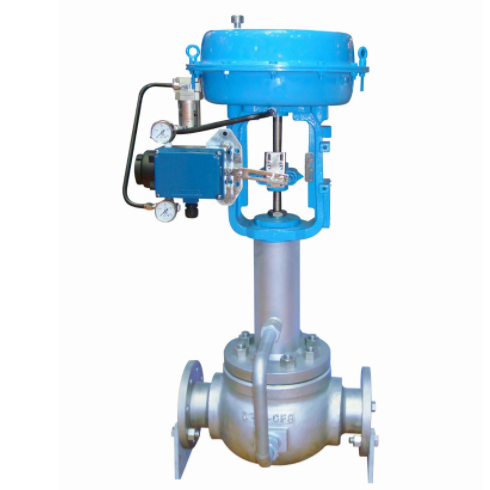

Pneumatic steam jacketed control valve

Model:

  • Port size:DN15-DN300
  • Pressure:PN10-PN64 CL150-CL600
  • Medium:Water,steam,oil,etc.
  • Temperature :-29~450℃
  • Body material:WCB,WCC,CF8,CF8M,etc.
  • Description:
  • Pneumatic steam jacketed control valve Feature

    Pneumatic steam jacketed control valve mainly applied to the occasions of thermal insulation,full the heat medium into the gap between valve body and metal jacket to keep thermal insulation and prevent fluid crystallization occurs, as well as the increase of viscosity, which due to the temperature reduction.

    Pneumatic steam jacketed control valve muti-springs pneumatic reinforce actuator makes the control valve realize the conversion of normal close and normal open on site easily,the spring can be effectively protected from the corrosion to prolong the service life of  control valve actuator and convenient for customers operation. The actuator of Pneumatic steam jacketed control valve and the intelligent control valve positioner are connected pipeless to strengthen the antisemitic performance,stability and precision adjustment, to meet to exactly control of the working conditions.

  • Pneumatic steam jacketed control valve Specification

    Pneumatic steam jacketed control valve Body type: straight through casting globe type with jacketed
    Spool type: non-balanced single seat plug type
    Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic steam jacketed control valve Bonnet type: Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Pneumatic control valve actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.

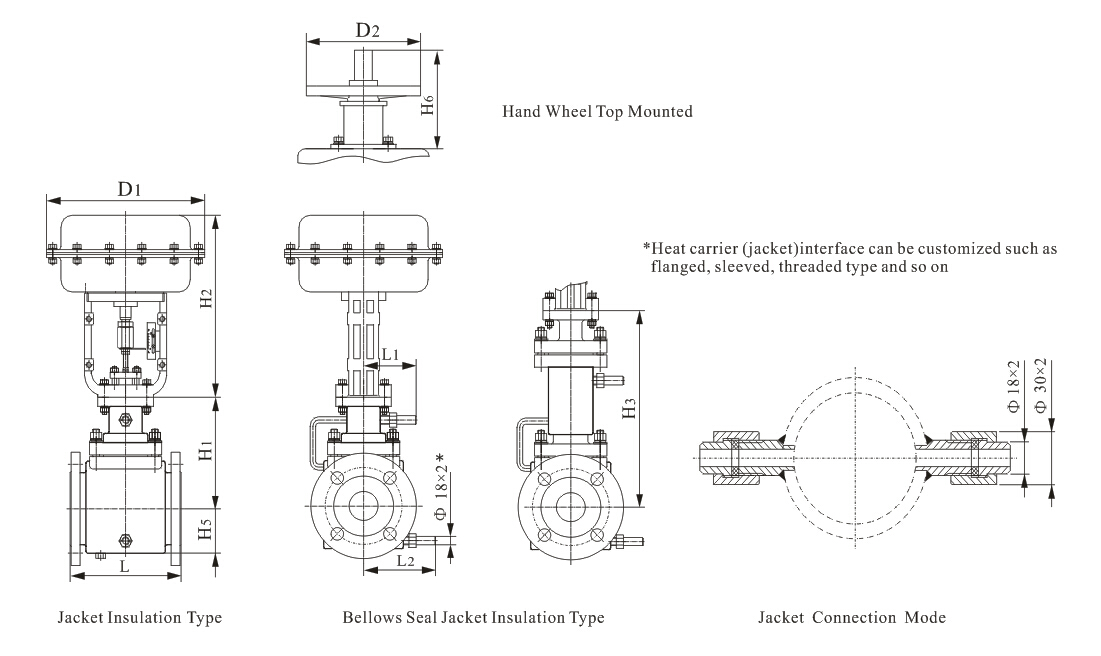

  • Pneumatic steam jacketed control valve Structure

  • Pneumatic steam jacketed control valve Material

    Component name control valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic steam jacketed control valve Performance

    Pneumatic steam jacketed control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Pneumatic steam jacketed control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Pneumatic steam jacketed control valve Performance
    Intrinsic error % ±1.5
    Return difference, % ≤1.5
    Dead zone, % ≤0.6
    Difference from beginning to end point, % ±2.5
    Rated travel difference, % ≤2.5

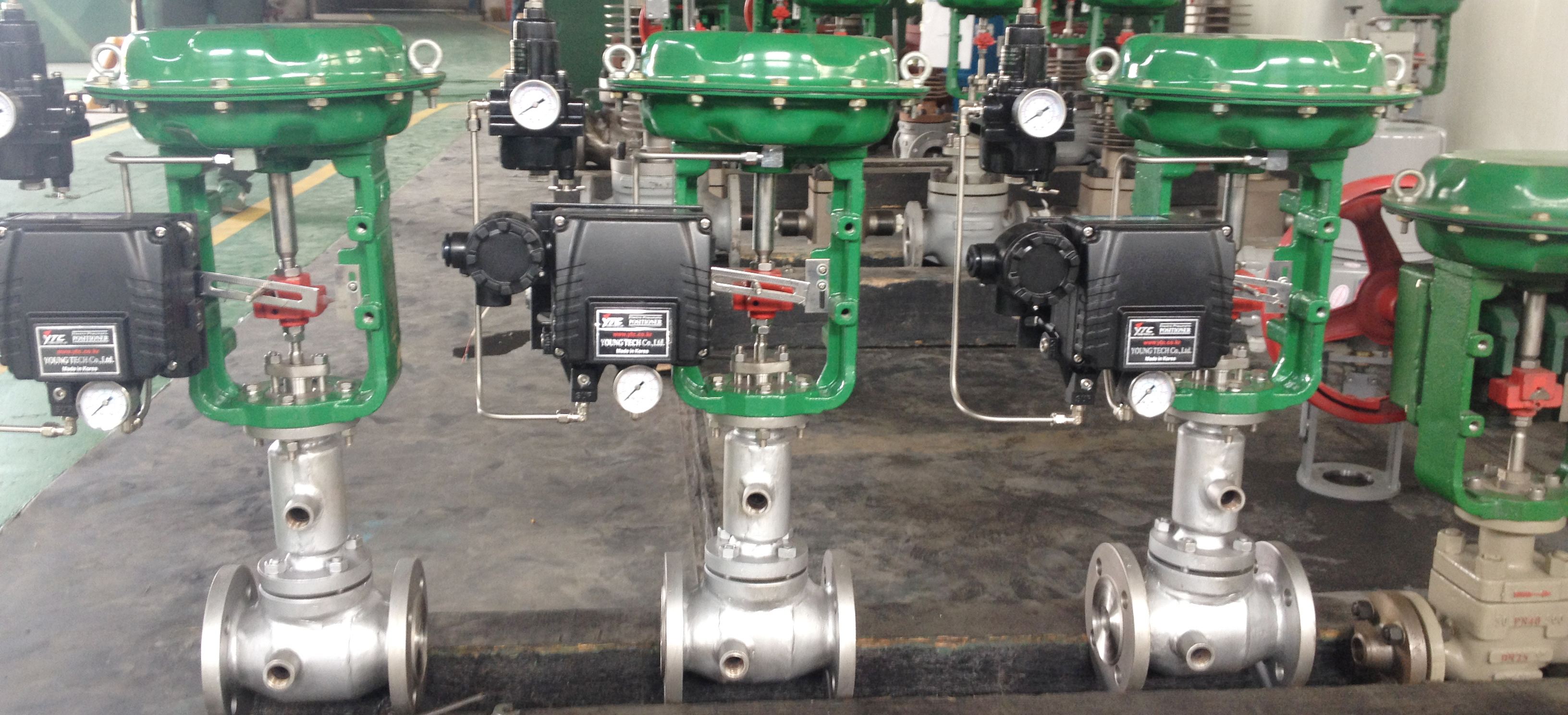

Pneumatic steam jacketed control valve
