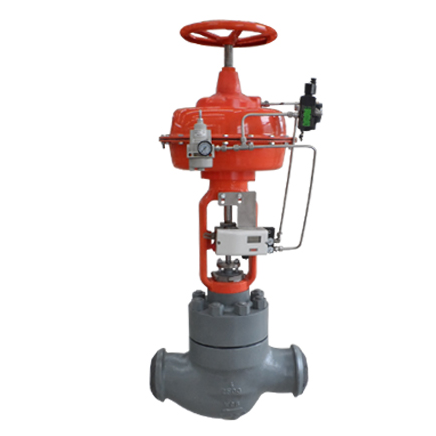

Pneumatic Minimum flow control valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN25~32Mpa(1500~2500LB)
  • Medium:water,Steam
  • Temperature :-40~450℃
  • Body material:WCB,A105,WC6,WC9,F11,F22
  • Description:
  • Pneumatic Minimum flow control valve descrption

    Pneumatic Minimum flow control valve is the key supporting equipment of power plant’s boiler feedwater pump.

    Boiler water from the feedwater pump will be pressurized up to 20-30Mpa or above in the deaerator then sent to the high pressure heater and eventually into the boiler. A certain minimum flow of the feedwater pump should be ensured to take away the heat generated by its operation so as to avoid overheating and vanes damage due to cavitation. Boiler feedwater flow is small during the startup or shutdown process.Also water demand decreases in condition of breakdown. In order to ensure the normal operation of the pump, a recirculation system should be mounted in the pump outlet to carry a portion of the feedwater back to the deaerator from the pump.

  • Pneumatic Minimum flow control valve feature

    1)Pneumatic Minimum flow control valve adopts convection, multi-stage pressure reducing mechanism, avoid cavitation efficiently, greatly prolong service life.

    2)All the trims of Minimum flow recirculation control valve can be quickly removed and replaced, easy to maintain with less cost.

    3)Imported high-quality stem packing ensures leak-free without frequent replacement.

    4)Pneumatic Minimum flow control valve is high performance material and structure, and exquisite workmanship enable both the plug and cage to have excellent anti-blocking and anti-jamming performance so that a small amount of sundries in the pipeline will not lead to any blocking for the passage nor jamming for the plug in condition of frequent openning operation.

    5)Appropriately matched plug and cage materials ,wear resistance, anti-scratch and anti-scuffing.

    6)Zero leakage,long-service life and low breakdown rate ensure a safe and reliable operation of the feedwater pump.

  • Pneumatic Minimum flow control valve technical parameter

    Nominal diameter: 3/4”-6”

    Nominal pressure: ANSI 150Lb-4500Lb

    Body type: straight-through type, angle type

    Operation temperature :150℃-450℃

    Flow characteristics: equal percentage,linear

    Actuator: electric or pneumatic actuator

    Leakage: meet ANSI B16. 104 V leakage (VI level seal is available)
