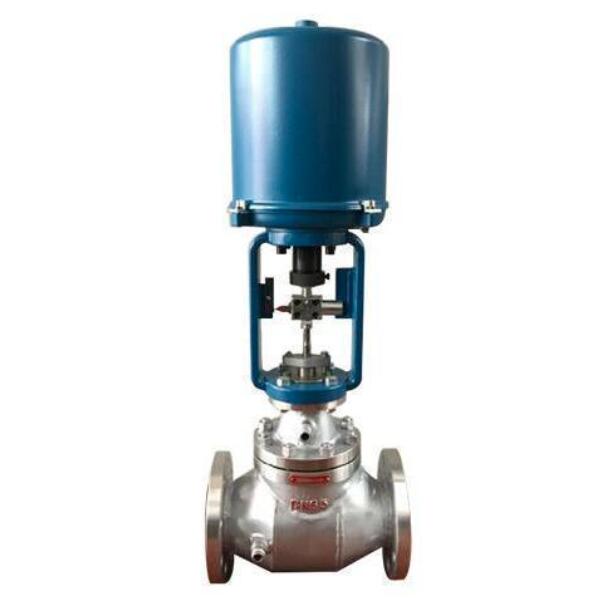

Electric Jacketed Control Valve

Control valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Wechat:17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：1/2"~24" (DN15~DN600)
Pressure：PN10-PN64 CL150-CL600
Medium：Water,steam,oil,gas,etc.
Temperature :-29～450℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Description：Electric Jacketed Control Valve Manufacturer, factory and supplier.

China Electric acketed control valve manufacturer, factory and supplier. Electric jacketed control valve with 3810 series (PSL series) electronic electric actuator and low sleeve insulation control valve body, electric actuator is an integrated structure, there are servo amplifier, input signal 4-20mA and power 220V can control operation. Electric jacketed control valve uses a single seat or cage guided control valve body and the valve cover with insulation device, Used when the temperature of the medium is higher than normal temperature, or due to the decrease of the temperature of the fluid viscosity, or solidification and insulation occasions, as the adjustment of pressure, flow, liquid level, temperature and other parameters of the given value. Electric jacketed control valve can be customized according to user requirements of a variety of constant temperature insulation regulating valve, cooling insulation control valve, the temperature range can be done between 10-500℃。

Electric jacketed control valve because many with a layer of jacket insulation layer, so even if the external temperature drops below zero, the valve still flexible operation to ensure that the oil pipeline can be disconnected, its advantage is that it can be set according to the field temperature requirements. It is an ideal regulating valve for heavy oil pipeline. Inject steam, heat conduction oil, hot water and high temperature gas according to user needs. The use of the whole regulating valve in the required temperature range for a long time, can prevent the crystallization of the medium. Electric jacketed control valve can be insulated, also can protect cold, cooling, widely used in petroleum, chemical, metallurgy, pharmaceutical industries.

Electric jacketed control valve specifiation:

Jacketed control valve body type:	straight through casting globe type
Spool type:	unbalanced seated
Nominal size:	DN15~600,、 NPS 1/2〞~ 24〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Jacketed control valve material:	WCB/WCC/WC6/CF8/CF8M/CF3M
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Actuator of control valve:	Electric: 3810L series smart actuator, PSL series actuator.

Electric jacketed control valve actuator specifiation:

Electric jacketed control valve Type\ Method	Electric actuator
	PSL or 3810L series
	Intelligent integrated type
Usage	Regulating
Air supply pressure or Power supply voltage	Power: AC 220V±10% 50Hz Or Power: AC 380V±10% 50Hz
Connector	Normal type: cable inlet 2-PF(G1/2〞) Explosive proof: Protection jacket PF(G3/4〞)
Direct action	Input signal increase, stem descend, valve close.
Reaction	Input signal increase, stem ascend, valve open.
Input signal	Input / output 4～20mA.DC
Lag	≤0.8%FS
Linear type	≤+1%FS
Environmental temperature	Standard type: -10℃～+60℃ With space heater : -35℃～+60℃ Explosive proof: -10℃～+40℃
Motorized steam control valve Accessories	Space heater (normal type) Non-standard accessories, need special customized notes.
