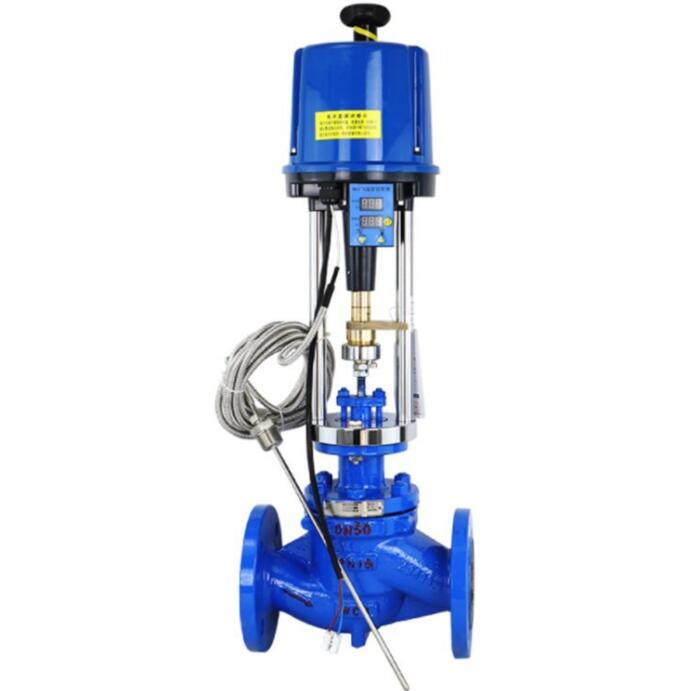

Electric self operated temperature control valve

Model:

  • Port size:DN15-DN600;1/2''-24''
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,steam,oil,gas
  • Temperature :-20~180ºC,-46~450ºC
  • Body material:Carbon Steel, Stainless Steel,forged steel
  • Description:China self operated temperature control valve manufacturer,factory and supplier.
China self operated temperature control valve manufacturer,factory and supplier,Electric self operated temperature control valve is composed of electric control valve, temperature controller and thermocouple,Electric self operated temperature control valve adopts the top guide structure, compact structure, S streamlined fluid path, large flow, small pressure differential loss, wide adjustable range and accurate temperature control.Electric self operated temperature control valve is built into the electric actuator ,without external positioner.
  • Electric self operated temperature control valve structure

    Self regulating temperature control valve structure
  • Electric self operated temperature control valve material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Bellows 304/316/316L
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • ​Electric self operated temperature control valve Performance

    Electric self operated temperature control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Electric self operated temperature control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Electric self operated temperature control valve Performance
    Intrinsic error (%) ±1.0
    Return difference(%) ≤1.0
    Dead zone(%) ≤1.0
    Difference from beginning to end point(%) ±2.5
    Rated travel difference(%) ≤2.5
