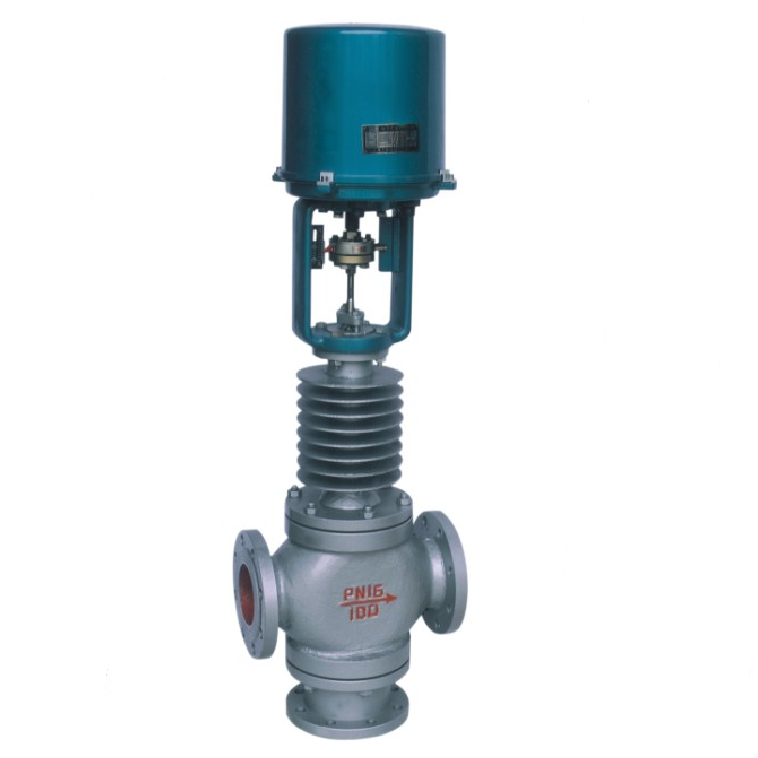

3 way temperature control valve

Model：

Port size：DN15~500, NPS 1/2〞~ 20〞
Pressure：PN16 ~ 100,150LB ~ 600LB
Medium：Water,oil,steam,gas
Temperature :-29～425℃
Body material：WCB LCB CF8 CF3 CF8M CF3M
Description：

3 way temperature control valve Feature
3 way temperature control valve has diverging and converging structure,3 way temperature control valve adopts double valve cores up and down guide structure, equipped with multiple spring actuator.3 way temperature control valve can replace two sets two-way valve and widely used in many occasions to regulate pressure, flow rate, temperature and liquid level.

3 way temperature control valve specification

control valve Body type:	3-way casting globe type
Spool type:	3-way double seat spool
Nominal size:	DN20~300,、 NPS 3/4〞~ 12〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
3 way temperature control valve Bonnet type:	Ⅰ:standard type（-20℃~230℃） Ⅱ:Radiator type: （-45℃~ high than 230℃ occasion） Ⅲ:Low temperature extended type（-196℃~ -45℃） Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
3 way temperature control valve Actuator:	Electric: 3810L series smart actuator, PSL series actuator. Pneumatic: Diaphragm actuator

3 way temperature control valve Performance

3 way temperature control valve Flow characteristic	Linear, percentage
Allowable range	30: 1
Rated Cv value	Percentage / linear CV8.5~1280
3 way temperature control valve Allowable leakage	Metal seal: IV grade（0.01% rated capacity） Leakage standard: GB/T 4213
3 way temperature control valve Performance
Intrinsic error (%)	±1.0
Return difference(%)	≤1.0
Dead zone(%)	≤1.0
Difference from beginning to end point(%)	±2.5
Rated travel difference(%)	≤2.5
