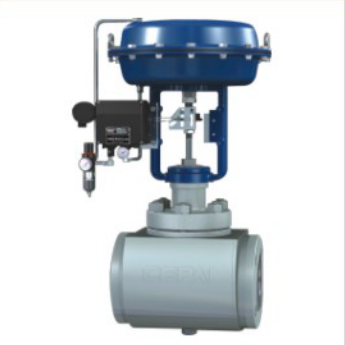

Pneumatic jacketed control valve

Model:

  • Port size:DN20~200, NPS 3/4〞~ 8〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Easy crystallizating medium
  • Temperature :-29~425℃
  • Body material:WCB CF8 CF8M
  • Description:
  • Pneumatic jacketed control valve Feature

    Pneumatic jacketed control valve mainly applied to the occasions of thermal insulation,full the heat medium into the gap between valve body and metal jacket to keep thermal insulation and prevent fluid crystallization occurs, as well as the increase of viscosity, which due to the temperature reduction.

    Pneumatic jacketed control valve muti-springs pneumatic reinforce actuator makes the control valve realize the conversion of normal close and normal open on site easily,the spring can be effectively protected from the corrosion to prolong the service life of  control valve actuator and convenient for customers operation. The actuator of Pneumatic jacketed control valve and the intelligent control valve positioner are connected pipeless to strengthen the antisemitic performance,stability and precision adjustment, to meet to exactly control of the working conditions.

  • Pneumatic jacketed control valve Specification

    Pneumatic jacketed control valve Body type: straight through casting globe type with jacketed
    Spool type: non-balanced single seat plug type
    Nominal size: DN20~200,、 NPS 3/4〞~ 8〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic jacketed control valve Bonnet type: Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Pneumatic jacketed control valve actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
  • Pneumatic jacketed control valve Structure

  • Pneumatic jacketed control valve Material

    Component name Pneumatic jacketed control val veMaterial
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic jacketed control valve Performance

    Pneumatic jacketed control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Pneumatic jacketed control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Pneumatic jacketed control valve Performance
    Intrinsic error % ±1.5
    Return difference, % ≤1.5
    Dead zone, % ≤0.6
    Difference from beginning to end point, % ±2.5
    Rated travel difference, % ≤2.5
  • Pneumatic jacketed control valve Special requirement

    Special test Material penetration flaw detection (PT), radiator test (RT), flow characteristic test,
    low temperature test.
    Special treatment Trim nitrogen treatment, seat hard alloy treatment.
    Special rinse Degreasing and dehydration treatment
    Special condition Special piping or connection, vacuum condition, S.S fastener, special coating.
    Special dimension Customized face to face length or dimension
    Test and inspection Third party test report
  • Pneumatic jacketed control valve actuator parameter

    Control Valve Type\ Method Pneumatic diaphragm actuator
    ZH23~ZH56
    Multi-spring type
    Usage Regulating type, ON-OFF type
    Air supply pressure or Power supply voltage Air supply pressure (Spring range)
    140(20~100)Kpa G
    240 (40~200) Kpa G
    280 (80~240) Kpa G
    Connector Air pipe connector: RC1/4
    Direct action Pressure increase, stem descend, valve close.
    Reaction Pressure increase, stem ascend, valve open.
    Input signal 40~20mA.DC(with positioner)
    Lag ≤1%FS(with positioner)
    Linear type 2%FS(with positioner)
    Environmental temperature -10℃~+70℃
    Pneumatic jacketed control valve Accessories E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
    Non-standard accessories, need special customized notes.
  • Pneumatic jacketed control valve technical parameter

    Seat diameter(mm) 10 12 15 20 25 32 40 50 65 80 100 125 150 200
    Rated Cv Percentage 1.6 2.5 4.0 6.3 10 16 25 40 63 100 160 250 400 630
    Linear 1.8 2.8 4.4 6.9 11 17.6 27.5 44 69 110 176 275 440 690
    Nom. size Travel Option flow characteristic Cv. (★standard  ●recommanded  ○customized)
    DN20 16mm
    DN25
    DN32 25 mm
    DN40
    DN50
    DN65 40mm
    DN80
    DN100
    DN125 60mm
    DN150
    DN200
    Pneumatic actuator
    Diaphragm area, Ae(cm2)
    ZHA/B-22 ZHA/B-23 ZHA/B-34 ZHA/B-45
    350 350 560 900
    Action Spring range Pneumatic jacketed control valve
    Metal sealing allowable pressure difference (MPa)
    Air open 20-100KPa 4.46 3.09 1.98 1.16 0.7 0.44 0.28 0.18 0.17 0.11 0.07 0.07 0.05 0.03
    40-200 KPa 6.4 6.4 5.94 3.34 2.14 1.31 0.84 0.53 0.51 0.33 0.21 0.22 0.15 0.09
    80-240 KPa 6.4 6.4 6.4 6.4 4.99 3.05 1.95 1.25 1.18 0.78 0.5 0.51 0.36 0.21
    Air close 20-100KPa 6.4 6.19 3.96 2.23 2.14 0.87 0.56 0.35 0.34 0.22 0.14 0.15 0.1 0.06
    40-200 KPa 6.4 6.4 6.4 6.4 6.4 5.86 3.64 2.3 2.21 1.43 0.91 0.95 0.66 0.37
    80-240 KPa 6.4 6.4 6.4 6.4 6.4 6.4 5.04 3.18 3.06 1.98 1.26 1.32 0.92 0.52
