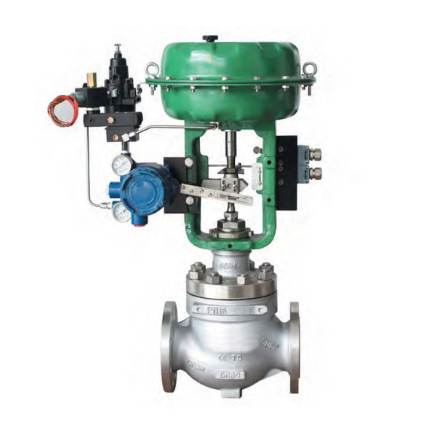

Pneumatic air pressure control valve

Model:

  • Port size:DN20~300, NPS 3/4〞~ 12〞
  • Pressure:PN16 ~ 100,150LB ~ 600LB
  • Medium:Water,air,gas
  • Temperature :-29~425℃
  • Body material:WCB A105
  • Description:
  • Pneumatic air pressure control valve Feature

    Pneumatic air pressure control valve is a top guide structure regulating valve, the single seat pneumatic control valve fluid channel was streamlined S, the control valve pressure drop, flow is large, wide adjustable range, flow characteristic curve of high precision, the spool oriented area, good vibration resistance. The Pneumatic air pressure control valve equipped with multi spring diaphragm actuator, compact structure, large output force. Pneumatic air pressure control valve Can be used for flow control of different pressure and temperature.
  • Pneumatic air pressure control valve Specification

    Pneumatic control valve
    Body type:
    straight through casting globe type
    Spool type: non-balanced single seat plug type
    Nominal size: DN20~300,、 NPS 3/4〞~ 12〞
    Nominal pressure: PN16 ~ 100、 CLASS 150LB ~ 600LB
    Connection: flange: FF、RF、MF、RTJ
    Welding: SW、BW
    Flange dimension: According to to IEC 60534
    Pneumatic air pressure
    control valve Bonnet type:
    Ⅰ:standard type(-20℃~230℃)
    Ⅱ:Radiator type: (-45℃~ high than 230℃ occasion)
    Ⅲ:Low temperature extended type(-196℃~ -45℃)
    Ⅳ:Bellow seal type
    Ⅴ:Warm insulation Jacket type
    Packing: V type PFTE packing, flex. graphite packing, etc.
    Gasket: Metal graphite packing
    Pneumatic air pressure control valve Actuator: Pneumatic: multi-spring diaphragm actuator, piston type actuator.
  • Pneumatic air pressure control valve Structure

  • Pneumatic air pressure control valve Material

    Component name Control Valve Material
    Body/Bonnet WCB/WCC/WC6/CF8/CF8M/CF3M
    Valve spool/Seat 304/316/316L(overlaying stellite alloy)
    Packing Normal:-196~150℃ is PTFE,RTFE,>230℃ is flexible graphite
    Gasket Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
    Diaphragm Cover Normal:Q235,Special:304
    Diaphragm NBR with reinforced polyester fabric
    Spring Normal:60Si2Mn,Special:50CrVa
    Control valve stem 2Cr13/17-4PH/304/316/316L
  • Pneumatic air pressure control valve Performance

    Pneumatic air pressure control valve
    Flow characteristic
    Linear, percentage, quick open
    Allowable range 50: 1 (CV<6.3 30: 1)
    Rated Cv value Percentage CV1.6~630 ,linear CV1.8~690
    Pneumatic control valve Allowable leakage Metal seal:  IV grade(0.01% rated capacity)
    Soft seal:  VI grade(foam grade)
    Leakage standard:  GB/T 4213
    Pneumatic air pressure control valve Performance
    Intrinsic error % ±1.5
    Return difference, % ≤1.5
    Dead zone, % ≤0.6
    Difference from beginning to end point, % ±2.5
    Rated travel difference, % ≤2.5
