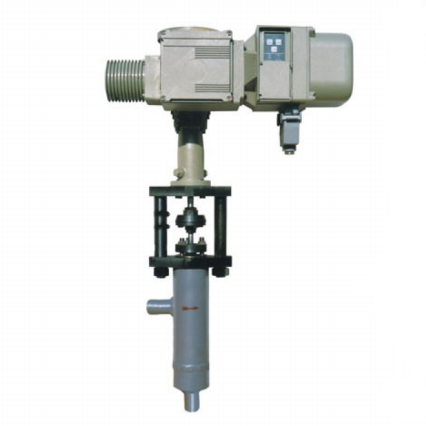

Boiler continuous blowdown control valve

Model:

  • Port size:DN25~50, NPS 1〞~ 2〞
  • Pressure:PN25~32Mpa(1500~2500LB)
  • Medium:Water,oil,steam,gas
  • Temperature :-29~420℃
  • Body material:WCB A105
  • Description:
  • Boiler continuous blowdown control valve feature

    Boiler continuous blowdown control valve is a kind of anti-cavitation multi-stage pressure reduction valve. The specially designed trim of Boiler continuous blowdown control valve enables fluid pressure reduction stage by stage, so that fluid velocity is controlled and cavitation damage is avoided. The throttling part is separable from the sealing face to effectively protect the sealing face. The Boiler continuous blowdown control valve trim surface is subjected to hardening treatment, reaching a hardness of about HRC70. It is featured by good erosion resistance and long service life. A large notch is opened on the plug surface, so that the plug will not be blocked if the fluids contain granules. The Boiler continuous blowdown control valve is mainly used for continuously removing some salts dissolved in boiler water in thermal power plants. It is one of the key valves that control high differential pressure saturated water in power plants.
  • Boiler continuous blowdown control valve parameter

    Trim features: top guided unbalanced trim structure
    multi-stage throttle valve plug structure
    Body type: straight-through type,  angle type  , Z type
    Bonnet type: standard type  heat dissipation type
    Flow characteristic: equal percentage  linear  quick open
    Size: DN25-50(1”-2”)
    Pressure class: PN25、32Mpa(ANSI 1500、2500LB)
    Leakage class: ASME B16.104 Ⅴ(standard type metal seat)
    Pipe connection type: flange type butt welding type
    Applicable temperature range: less than 420C°
    control valve Actuator type: pneumatic diaphragm actuator
    pneumatic piston actuator
    electric actuator

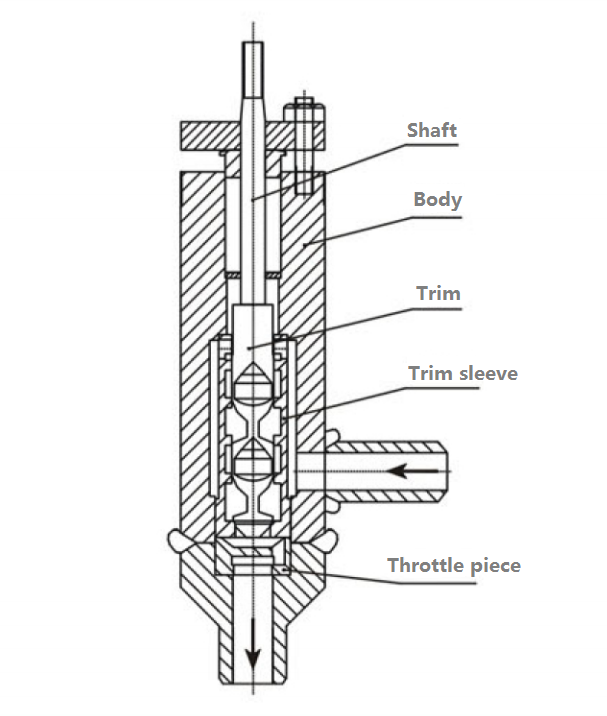

  • Boiler continuous blowdown control valve structure
