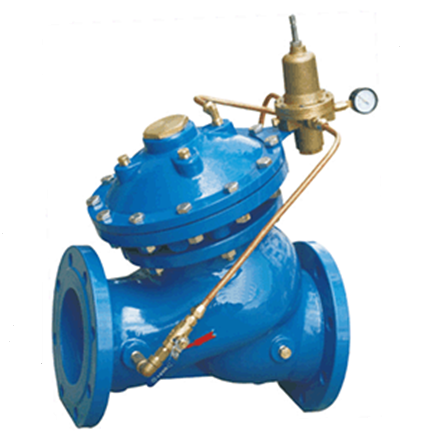

YX741X diaphragm adjustable pressure reducing control valve

Model:

  • Port size:DN50~600, NPS 2〞~ 24〞
  • Pressure:PN16 ~ 25 CLASS 150/300LB
  • Medium:Water
  • Temperature :0~80℃
  • Body material:Cast iron,Ductile iron,WCB,Stainless steel
  • Description:
  • YX741X diaphragm adjustable pressure reducing control valve description

    YX741X diaphragm adjustable pressure reducing control valve is installed in feeding/draining water system in high building to reduce the inlet pressure required pressure.The YX741X diaphragm adjustable pressure reducing control valve ensure outlet pressure stay in the setting valve stably on its own energy,namely the outlet pressure does not change owing to the inlet pressure's and flow's change.There is self-cleaning filtering mesh installed at the valve control system's inlet not to let the great specific gravity and large diameter particle flow in to the system and ensure the system is unimpeded.The YX741X diaphragm adjustable pressure reducing control valve acts quickly and has a long life.
  • YX741X diaphragm adjustable pressure reducing control valve Performance

    Nominal Pressure
    (MPa)
    Shell Test
    (MPa)
    Sealing Test
    (MPa)
    Fluids Fluids Temp
    (°C)
    1.0 1.5 1.1 Water 0-80
    1.6 2.4 1.76
    2.5 3.75 2.75

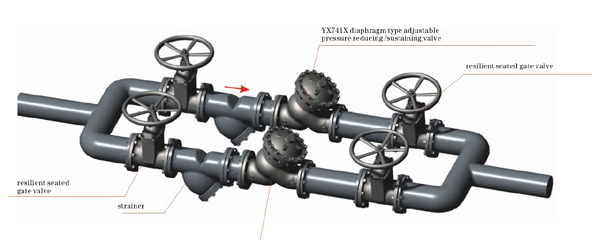

  • YX741X diaphragm adjustable pressure reducing control valve installation diagram

    YX741X diaphragm adjustable pressure reducing control valve diagram
  • YX741X diaphragm adjustable pressure reducing control valve structure

    YX741X diaphragm adjustable pressure reducing control valve structure
  • YX741X diaphragm adjustable pressure reducing control valve dimension

    DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600
    L 203 216 241 292 330 356 457 533 610 686 762 864 914 1067
    H 300 337 467 520 580 640 778 889 1010 1037 1264 1294 1324 1600
