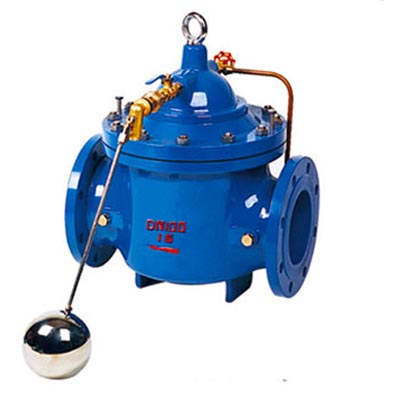

100X Water level Remote Control Valve

Model:

  • Port size:DN20~800
  • Pressure:PN10 ~ PN16
  • Medium:Water
  • Temperature :0~80℃
  • Body material:Cast iron,Ductile iron,WCB,Stainless steel
  • Description:
  • 100X Water level Remote Control Valve description

    100X Water level Remote Control Valve maintains constant liquid level in a tank. The pilot is sensitive to slight changes in level. The main valve open when level drops and closes when level rises. The 100X Water level Remote Control Valve consists of basic valve and buoyancy pilot and controls the outflow in a water tank supply.100X Water level Remote Control Valve is installed on the inlet of a water pool or tower. 100X Float Control Valves is controlled by the floating pilot valves to close the inlet to stop water supply when the water level gets to the preset height and to open the inlet to supply water to the water tower or pool when the water level is lower than the preset one, so as to realize the automatic water control according to the changing water level.100X Water level Remote Control Valve features by the high accuracy of level control, water pressure disturbance resisting, mountable on any positions, reliable seal performance, easy installation, maintenance, debugging and check, long duration (The floating pilot valve can be separately mounted from the main one).

    Notes:
    Below DN 450 Diaphragm type 100X Water level Remote Control Valve
    Above DN 500 piston type 100X Water level Remote Control Valve

  • 100X Water level Remote Control Valve Performance

    Nominal Pressure
    (MPa)
    Shell Test
    (MPa)
    Sealing Test
    (MPa)
    Fluids Fluids Temp
    (°C)
    1.0 1.5 1.1 Water 0-80
    1.6 2.4 1.76
    2.5 3.75 2.75

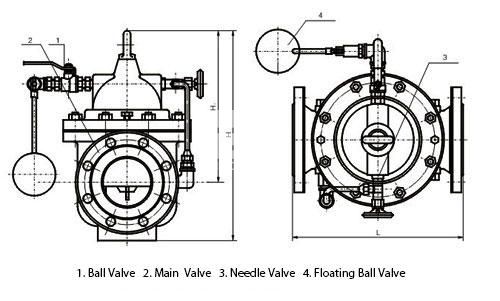

  • 100X Water level Remote Control Valve structure

    100X Water level Remote Control Valve structure
