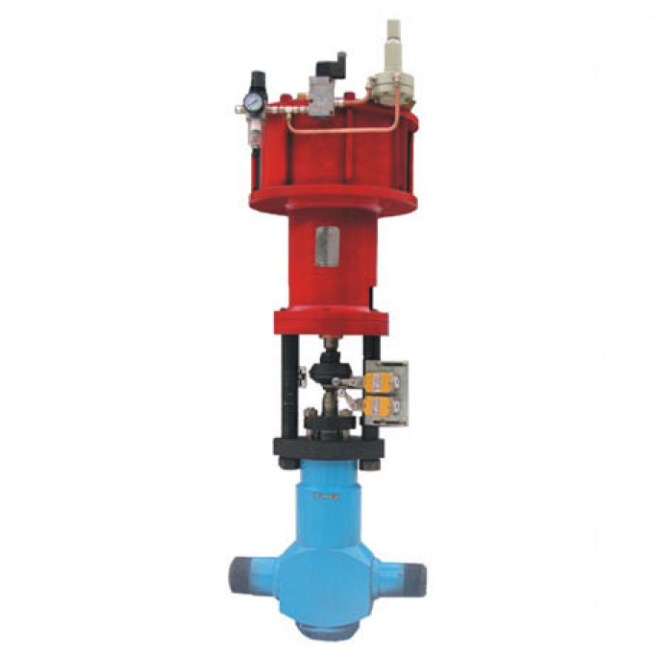

Pneumatic main steam trap control valve

Model:

  • Port size:DN25~50, NPS 1〞~ 2〞
  • Pressure:PN25~32Mpa(1500~2500LB)
  • Medium:Water,steam
  • Temperature :-29~570℃
  • Body material:WC6 WC9 F11 F22
  • Description:
  • Pneumatic main steam trap control valve feature

    Pneumatic main steam trap control valve is suitable for controlling high temperature and high pressure saturated water in the drain systems of main steam and reheat steam pipes in thermal power plants. The tandem type fluid channel is continuously changing the fluid direction, so that fluid velocity is controlled at about 30m/s and cavitation damage is avoided. The throttling part of Pneumatic main steam trap control valve is separable from the sealing face to effectively protect the sealing face. The Pneumatic main steam trap control valve trim surface is subjected to hardening treatment, reaching a hardness of about HRC70. It is featured by good erosion resistance and long service life. The Pneumatic main steam trap control valve can be pneumatically or electrically controlled.
  • Pneumatic main steam trap control valve parameter

    Trim features: labyrinth cage trim
    multi-stage throttle valve plug structure
    Body type: straight-through type
    angle type
    Bonnet type: standard type
    heat dissipation type
    Flow characteristic: equal percentage
    linear
    quick open
    Size: DN25-50(1”-2”)
    Pressure class: PN25、32Mpa(ANSI 1500、2500LB)
    Leakage class: ASME B16.104 Ⅴ(standard type metal seat)
    Pipe connection type: flange type
    butt welding type
    Applicable temperature range: less than 560C°
    control valve Actuator type: pneumatic diaphragm actuator
    pneumatic piston actuator
    electric actuator
  • Pneumatic main steam trap control valve structure
