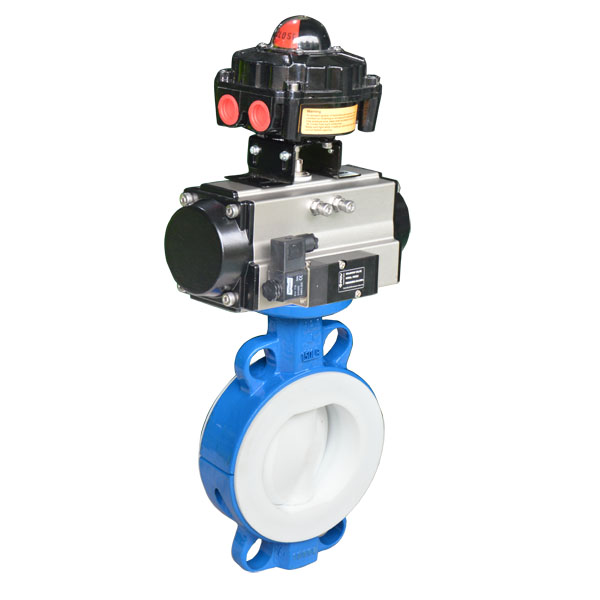

Pneumatic PTFE lined butterfly valve introduction
Pneumatic PTFE lined butterfly valve is full PTFE or PFA lined body and disc for corrosive medium.The connection end can be wafer,lug or flange type..Pneumatic PTFE lined butterfly valve can be easily installed and maintained in any location.The sealing element can be replaced, and the sealing performance is reliable to achieve zero leakage of two-way sealing, the sealing material is resistant to aging, corrosion and long service life.

Pneumatic PTFE lined butterfly valve is not only widely used in petroleum, gas, chemical industry, water treatment and other general industries, but also used in the cooling water system of qianthermal power station.

Pneumatic PTFE lined butterfly valve specification
Body: Cast Iron, Ductile Iron, Aluminum Stainless Steel,CF8,CF8M,CF3M
Disc: Stainless Steel+PTFE, Stainless Steel+PFA, Stainless Steel+F4
Stem: Stainless Steel
Seats: PTFE
Size: 2″ – 24″ (50mm – 600mm)
Flange accommodation: EN 1092 PN 6/PN10/PN16
ASME Class 150
AS 4087 PN 10/ PN 16
JIS 5K/10K
Top flange:ISO5211
Temperature range: -40 °C to + 180 °C (depending on pressure, medium and material)
Body style: wafer,LUG,Flange

Pneumatic PTFE lined butterfly valve technical parameter

Optional functions of electric actuator	double acting, single acting
Optional models of electric actuator	AT series, AW series
Voltage	AC110V, AC220V, AC24V,DC24V
Air source pressure	2bar-8bar
Nominal diameter	DN25mm ~ DN1200mm
Nominal pressure	PN1.0MPa~PN1.6MPa
Applicable temperature	PTFE:-30~ +180℃
Connection mode	Lug,wafer,flange type
Body material	carbon steel, stainless steel+PTFE lined
Valve disc material	carbon steel, stainless steel+PTFE lined
Seat lining	PTFE
Suitable medium	water liquid, gas, slurry, oil,corrosive medium. etc.
