Type: double acting reciprocating, spring return type

Nominal size: DN10-DN100

Nominal pressure: PN16MPa ~ PN25

Valve body material: CF8M/CF8(SS316,SS304)

Sealing material: PTFE

Applicable medium: water, neutral gas and liquid, alcohol, oil, organic solvent, water vapor, weak acid and weak base solution

Medium temperature: PTFE: -20℃~ 180℃ high temperature -20℃~300℃FPM: -10℃ ~ 100℃

Ambient temperature: -10℃-+80℃

Control form: single acting normally closed, normally open, double acting normally closed, double acting free state

Connection mode: internal thread, flange, quick assembly, welding

Air source pressure: double action: 3-8bar/ single action: 4-8bar

Actuator housing: polyamide, stainless steel

Valve position signal: Positioner: 4 ~ 20mA/ returner: full on and off signal

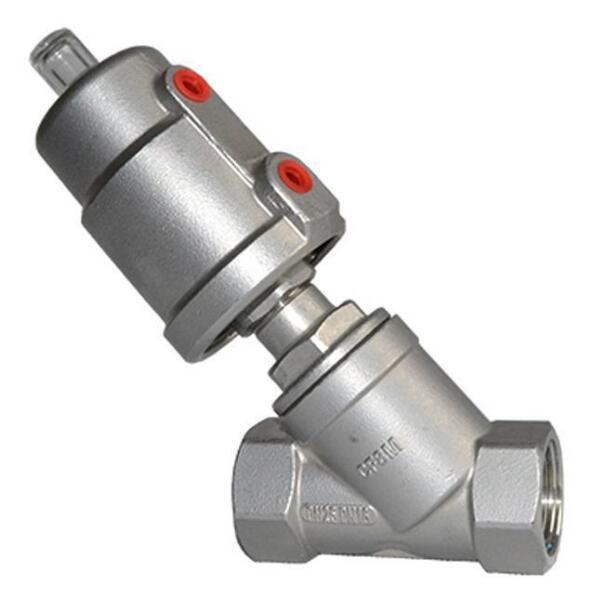

Angle seat valve features:

1. Visual position indication: can be connected to the limit switch or emergency manual device.

2. Easy to install: the air control head can be rotated 360°, and even the limit switch can be rotated 360°. It can be easily installed to two limit switches.

3. Advanced pneumatic controller: thickened engineering plastic shell, safe and reliable. Low wear piston structure, large capacity and low gas consumption. Internal components self-lubricating, maintenance free.

4. Easy connection: MAMUR standard connection, embedded metal connector. A smaller control head is optional.

5. Long life guide rod: stem Teflon (PTEE) seal, avoid dirt import. Self lubricating, maintenance free. Stem is specially treated to ensure optimal fixation and automatic position correction.

6. No water hammer action: When the fluid flows from below the valve stem, the water hammer (water impact) is absorbed.

7. Advanced valve body mechanism: flow is 30% larger than the ordinary Angle seat, smaller volume, better fluid flow.

8. Stainless steel 304 316 body, Teflon seal, high temperature resistance, corrosion resistance. Life up to five million times, the single acting Angle seat valve has the advantages of simple structure, beautiful appearance, quick assembly and disassembly, quick switching, flexible operation, small fluid resistance, safe and reliable use.
