3 Way Pressure Regulating Control Valve Feature

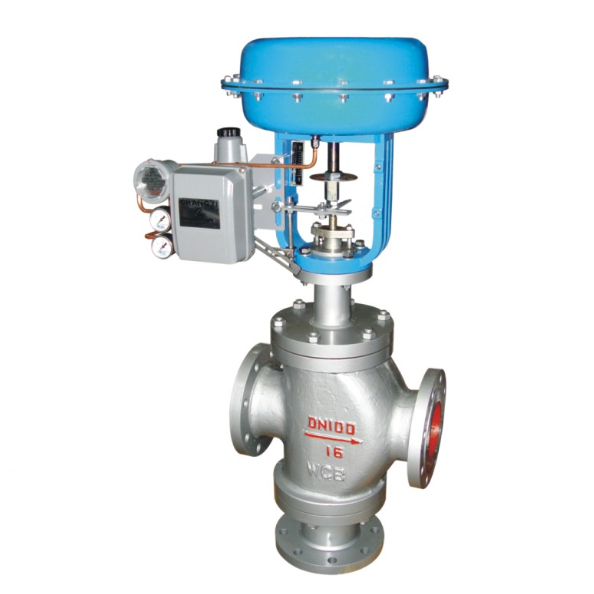

3 Way Pressure Regulating Control Valve is for diverting or converging service ,diverging structure to diverge one way flow fluid into two way fluid ,converging structure to converge two way flow fluid into one way fuild.3 Way Pressure Regulating Control Valve has diverging and converging structure for mixing and diverting service,3 Way Pressure Regulating Control Valve adopts double valve cores up and down guide structure, equipped with multiple spring actuator.3 Way Pressure Regulating Control Valve can replace two sets two-way valve and widely used in many occasions to regulate pressure, flow rate, temperature and liquid level.

3 Way Pressure Regulating Control Valve Body type:	three way casting globe type
Spool type:	three way double seat spool
Nominal size:	DN20~300 NPS 3/4〞~ 12〞
Nominal pressure:	PN16 ~ 100、 CLASS 150LB ~ 600LB
Connection: flange:	FF、RF、MF、RTJ
Welding:	SW、BW
Flange dimension:	According to to IEC 60534
Pneumatic 3 way diverting regulating valve Bonnet type:	Ⅰ:standard type（-20℃~230℃） Ⅱ:Radiator type: （-45℃~ high than 230℃ occasion） Ⅲ:Low temperature extended type（-196℃~ -45℃） Ⅳ:Bellow seal type Ⅴ:Warm insulation Jacket type
Packing:	V type PFTE packing, flex. graphite packing, etc.
Gasket:	Metal graphite packing
Pneumatic Control valve Actuator:	Pneumatic:multi-spring diaphragm actuator, piston type actuator.

Component name	Control Valve Material
Body/Bonnet	WCB/WCC/WC6/CF8/CF8M/CF3M
Valve spool/Seat	304/316/316L(overlaying stellite alloy)
Packing	Normal:-196～150℃ is PTFE,RTFE,>230℃ is flexible graphite
Bellow	304,316,316L
Gasket	Normal:Stainless steel with flexible graphite,Special:Metal tooth type gasket
Stem	2Cr13/17-4PH/304/316/316L
Diaphragm Cover	Normal:Q235,Special:304
Diaphragm	NBR with reinforced polyester fabric
Spring	Normal:60Si2Mn,Special:50CrVa

3 Way Pressure Regulating Control Valve Flow characteristic	Linear, percentage
Allowable range	30: 1
Rated Cv value	Percentage / linear CV8.5~1280
Pneumatic 3-way control valve Allowable leakage	Metal seal: IV grade（0.01% rated capacity） Leakage standard: GB/T 4213
3 Way Pressure Regulating Control Valve Performance
Intrinsic error(%)		±1.5
Return difference(%)		≤1.5
Dead zone(%)		≤0.6
Difference from beginning to end point(%)		±2.5
Rated travel difference(%)		≤2.5
